30-01681

Sold by the spool (153 m / est. 500 ft).


All / Saleable / Wire

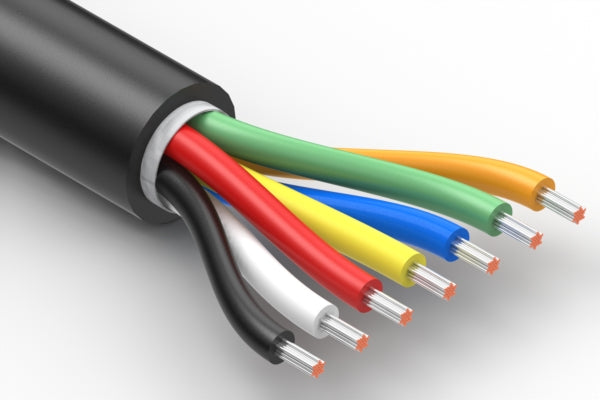

Wire, 7C TS, 20 AWG, UL20387, 300V, 105C, 60C oil, UV, 7.6 mm, VW-1, PVC, 80A, black

Specifications

Sale unit By the spool (153 m / est. 500 ft)
Insulator color White, Black, Red, Yellow, Blue, Green, Orange
Shield type None
Bend radius 45.6 mm
Number of conductors 7
Voltage rating 300.0 V
Wire outer diameter 7.6 mm
Wire gauge (AWG) 20
Cable style round
Conductor insulation PVC
Conductor material 1 TS
Jacket color Black
Jacket materials PVC
UL style 20387
Wire flammability VW-1

PDF specification
