Description
Description

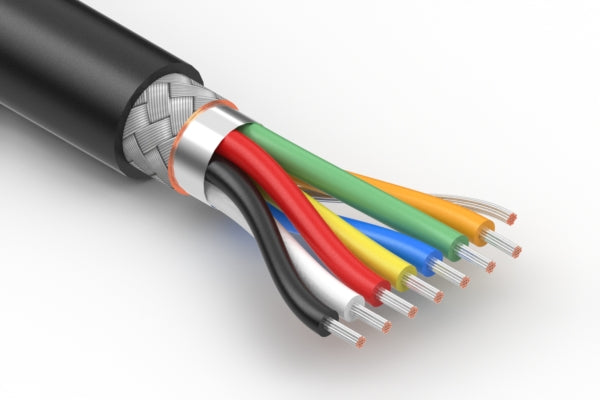

Wire, 7C TS, 20 AWG, UL20387, 300V, 105C, 60C oil, UV, 8 mm, shielded, VW-1, PVC, 80A, black
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 7 |
| wire outer Ø | 8 mm |
| AWG | 20 |
| cable style | round |
| shield | braid + foil |
| jacket material | PVC |
| bend radius | 48 mm |
| color | BLACK |
| insulator color | White, Black, Red, Yellow, Blue, Green, Orange |
| operating temperature | -40~105 °C |
| voltage rating | 300 V |
| UL style | (241, '20387') |
| HTS code | 8544.49.3080 |
| Prop65 | Vinyl Chloride |
PDF Spec
Compliance
