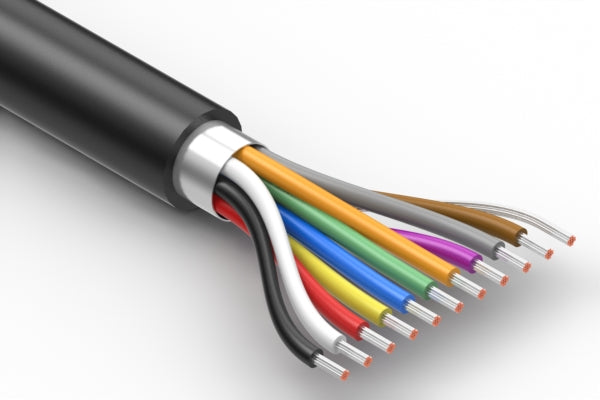

Wire, 10C TS, 32 AWG, 21509, 600V, 105C, 4.5 mm, shielded, FT2, mPPE
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 10 |
| wire outer Ø | 4.5 mm |
| AWG | 32 |
| cable style | round |
| shield | Foil |
| jacket material | mPPE |
| bend radius | 27 mm |
| color | BLACK |
| insulator color | White, Black, Red, Yellow, Blue, Green, Orange, Purple, Gray, Brown |
| operating temperature | -40~105 °C |
| voltage rating | 600 V |
| UL style | (291, '21509') |
| HTS code | 8544.49.3080 |
| unit weight | 25.49g |
