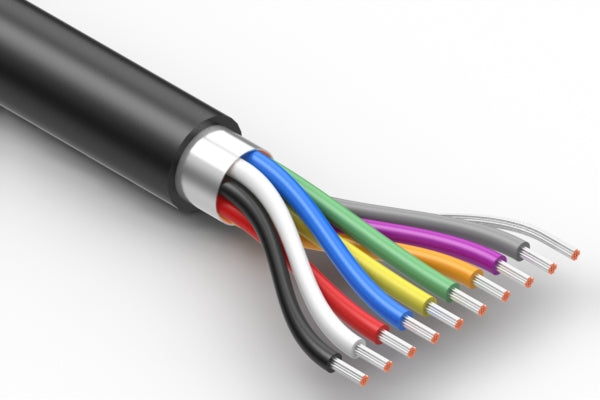

Wire, 9C TS, 22 AWG, 21509, 600V, 105C, 6.4 mm, shielded, FT2, mPPE
- Specifications
- PDF Spec
- Compliance
Specifications
| # of conductors | 9 |
| wire outer Ø | 6.4 mm |
| AWG | 22 |
| cable style | round |
| shield | Foil |
| jacket material | mPPE |
| bend radius | 38.4 mm |
| color | BLACK |
| insulator color | White, Black, Red, Yellow, Blue, Green, Orange, Purple, Gray |
| operating temperature | -40~105 °C |
| voltage rating | 600 V |
| UL style | (291, '21509') |
| HTS code | 8544.49.3080 |
| unit weight | 68.30g |
