Description
Description

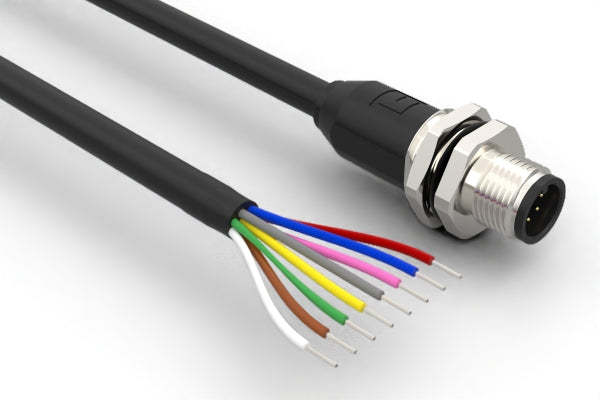

Cable, 500 mm, M12 A-code plug 8 pin panel mount 54-00538 to 5 mm tinned, 24 AWG, 30-03792 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug to s + t |
| connector orientation | 180° |
| M type | M12 |
| # of conductors | 8 |
| # of connector contacts | 8 |
| connector center pin Ø | 0.8 mm |
| connector plating | Gold |
| connector coding | A |
| connector length | 28.0 mm |
| mounting style | panel mount (front) |
| connector color | black |
| AWG | 24 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| bend radius | 38.4 |
| color | BLACK |
| insulator color | White, Red, Yellow, Blue, Green, Gray, Brown, Pink |
| cable length | 500 mm |
| operating temperature | -40~105 °C |
| voltage rating | 30 V |
| current rating | 2.0 A |
| cycle rating | 1000 |
| UL style | (241, '20387') |
| features | panel mount |
| connector 1 | 54-00538 |
| wire part # | 20251030027 |
| HTS code | 8544.42.9090 |
| unit weight | 50.67g |
| Prop65 | Vinyl Chloride |
