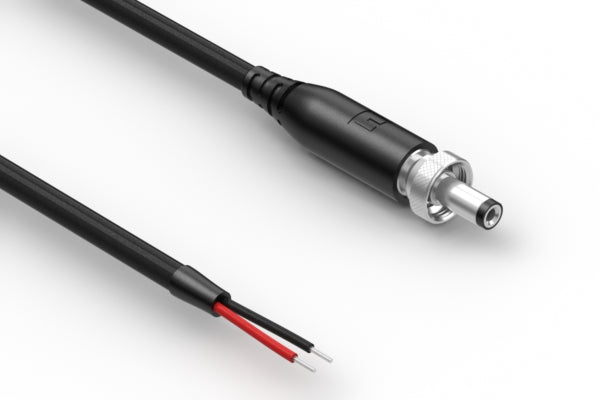

Cable, 1830 mm, 5.5x2.5xL41.20 mm 55-00203 dc plug to 5 mm tinned, 20 AWG, 30-03061
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | dc |
| connector style | plug to s + t |
| connector orientation | 180° |
| # of conductors | 2 |
| # of connector contacts | 2 |
| connector center pin Ø | 2.5 mm |
| connector plating | nickel |
| connector length | 41.2 mm |
| locking style | Thread lock |
| mounting style | molding |
| connector color | black |
| AWG | 20 |
| cable style | round |
| shield | unshielded |
| color | BLACK |
| insulator color | Black, Red |
| cable length | 1830 mm |
| cycle rating | 5000 |
| UL style | (296, '21765') |
| features | assembly type |
| connector 1 | 55-00203 |
| wire part # | 30-03061 |
| HTS code | 8544.42.9090 |
| unit weight | 84.44g |
| Prop65 | Nickel |
