Description
Description

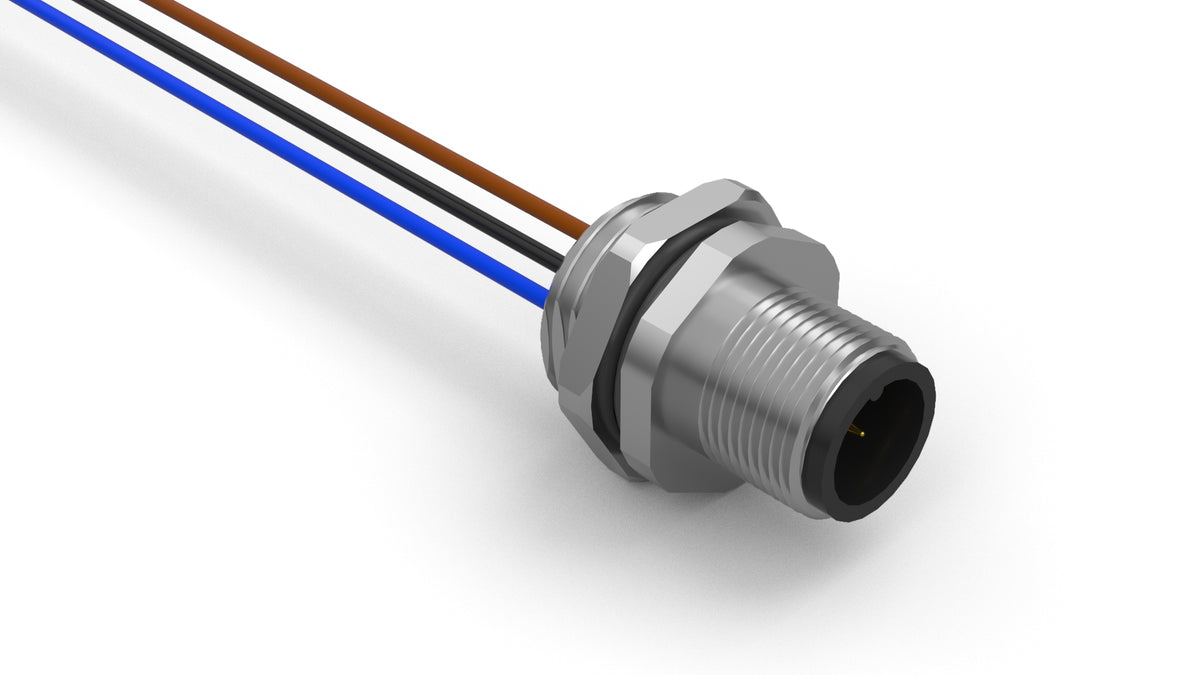

Cable, 305 mm, M12 A-code plug 3 pin panel mount 54-00187 to blunt cut, 22 AWG, UL11028, hook-up wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector type | M series |
| connector style | plug to s + t |
| connector orientation | 180° |
| M type | M12 |
| # of connector contacts | 3 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | D |
| connector length | 24.0 mm |
| mounting style | panel mount (front) |
| connector color | black |
| AWG | 22 |
| cable style | round |
| insulator color | Black, Blue, Brown |
| cable length | 305 mm |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 4.0 A |
| cycle rating | 500 |
| UL style | (213, '11028') |
| features | panel mount |
| connector 1 | 54-00187 |
| HTS code | 8544.42.9090 |
| Prop65 | Nickel |
