Description
Description

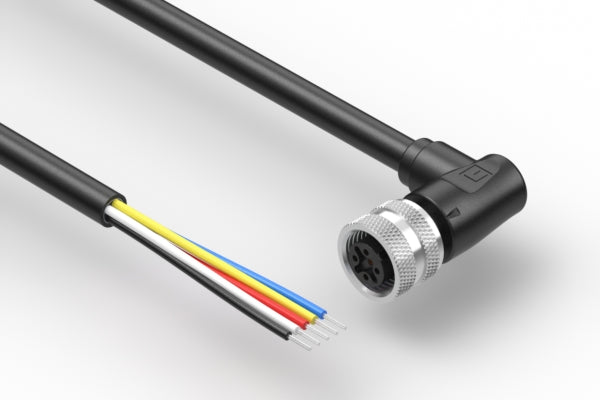

Cable, 3000 mm, 1.0 mm 5C 90° 50-00953 M12 socket to 5 mm tinned, 22 AWG, 30-01666 wire
- Specifications
- PDF Spec
- 3D Model
- Compliance
Specifications
| connector style | socket to s + t |
| connector orientation | 90° |
| # of conductors | 5 |
| # of connector contacts | 5 |
| connector center pin Ø | 1.0 mm |
| connector plating | gold |
| connector coding | A |
| connector length | 22.0 mm |
| locking style | Thread lock |
| mounting style | molding |
| connector color | black |
| wire outer Ø | 6.1 mm |
| AWG | 22 |
| cable style | round |
| shield | unshielded |
| jacket material | PVC |
| color | BLACK |
| insulator color | White, Black, Red, Yellow, Blue |
| cable length | 3000 mm |
| operating temperature | -40~105 °C |
| voltage rating | 60 V |
| current rating | 4.0 A |
| cycle rating | 500 cycles |
| UL style | (241, '20387') |
| connector 1 | 50-00953 |
| wire part # | 30-01666 |
| HTS code | 8544.42.9090 |
| unit weight | 192.80g |
| Prop65 | Vinyl Chloride |
